Wireless monitoring of oil field and coal mine
2020-05-19 In order to ensure the production safety of oil field, prevent oil field accidents, protect the personal safety of oil field employees, promote the development of oil industry, facilitate the supervision and supervision of oil safety by the competent leaders of governments and industries at all levels, and make the superior units and competent departments easy to manage and master the safety conditions, project quality and project progress of the construction site, tianshitong Technology Co., Ltd. is specially designed for this area The "remote wireless video monitoring system" is designed to establish a construction site video monitoring system mainly based on digital wireless video monitoring, so as to improve the efficiency of construction safety and management system.

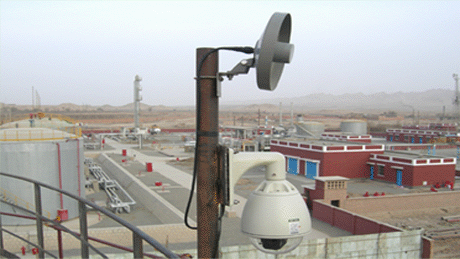

The microwave wireless camera installed in the middle of several adjacent drilling wells is directly transmitted to the drilling division control center by wireless, monitoring the operation, theft and stolen oil of the drilling at any time, and connected to the general monitoring of the oil company through ADSL (broadband access). By using the preset position automatic patrol function of the high-speed intelligent ball machine, it can solve the automatic cycle patrol monitoring of the focus point from 1 to 16 points. If the focus point is less than 16 points, the same scene can be set repeatedly, and the monitoring frequency of the focus point can be increased. A plurality of wireless cameras are connected to the area center to form a point to point connection and transmission.

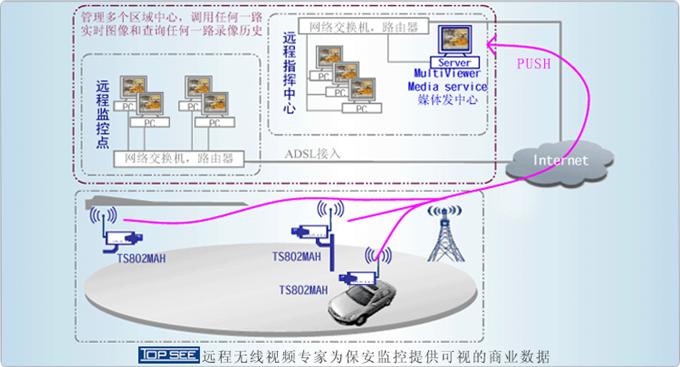

System diagram:
The microwave wireless camera installed in the middle of several adjacent drilling wells is directly transmitted to the drilling division control center by wireless, monitoring the operation, theft and stolen oil of the drilling at any time, and connected to the general monitoring of the oil company through ADSL (broadband access). By using the preset position automatic patrol function of the high-speed intelligent ball machine, it can solve the automatic cycle patrol monitoring of the focus point from 1 to 16 points. If the focus point is less than 16 points, the same scene can be set repeatedly, and the monitoring frequency of the focus point can be increased. A plurality of wireless cameras are connected to the area center to form a point to point connection and transmission.
System diagram:
