  • Nvr4.0 h.265 series 32 channel network video recorder

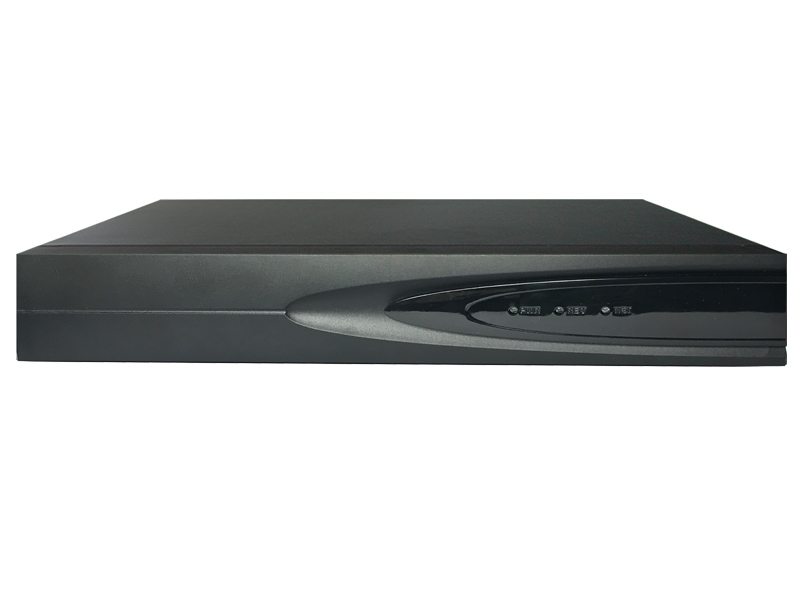

Nvr4.0 h.265 series 32 channel network video recorder

TS8232C6
The most easy-to-use popular and commercialized 32-way embedded h.265 NVR; specially designed for stores, small warehouses, small offices and families, it can access high-definition IP cameras, provide preview / video / playback and other functions; support mobile monitoring, support seetung cloud service, and realize app second continuous preview + remote video playback.

Technical hotline:

400-168-0280

Orders

Specification

TS8232C6

2 Disk 32CH H.265+ NVR

1

System Structure

Embedded LINUX design,pure hardware decode,watchdog,hard disk storage,HDMI HD display,IP network video access.

Main processor Hi3536C;

2

Video Input

HD IPC access, each channel support dual stream access, support auto search,add,recording,preview and without debugging

Access bandwidth 128Mbps;

3

Video Output

1channel HDMI output,

support 4K (3840×2160)/30Hz,1920×1080,1440×900,1366×768,

1280×1024,1280×800,1024×768 resolution output show;

1 channel VGA output,homology with HDMI,support 1920×1080,1440×900,1366×768,

1280×1024,1280×800,1024×768 resolution output show;

Support Seetong client preview,APP preview and seconds connection

1/2/4/6/8/9/10/16/25/32 pictures real time preview;

4

Video recording resolution

Support 720P/960P/1080P/3MP/4MP/5MP/4K;

5

Video Capacity

Support H.265+/H.265/H.264 decoding;

NVR local recording playback support 4CH 2MP,2CH 4MP,1CH 4K; Seetong client recording playback support 4 channels.

6

Audio

Standard G.711, support audio and video recording,support HDMI output channel preview and playback audio and video, Seetong client audio and video preview and playback;

7

Storage

2*SATA hard disk interface,support 8TB capacity;

Support schedule record, motion detection linkage record;

Support external USB storage devices (such as ordinary U disk, mobile hard disk) backup;

8

User

Local maximum support for 16 users;

9

Network Interface

1*RJ45 Ethernet interface, support 10/100/1000M self-adaption;

support TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, P2P, SMTP, GB28181 and so on protocols;

10

Peripheral Interface

2*USB2.0 interface(rear); support for the mouse, USB upgrade, import and export;

11

Front Panel

1* power,1*record,1*network indicator light;

12

Business Functions

Support preview/recording/forward/remote service, support alarm linkage, support Seetong client remote control software; support seetong cloud service;

13

Working Temperature

-10℃~+55℃

14

Working Humidity

10%90%

15

Others

DC +12V/4A power input, host power consumption≤3W (No disk), size 335*253.5*50mm (W*D*H), host weight 1170g;
